Refractory Briquetting Machine

Refractories are mainly inorganic non-metallic materials with a refractoriness not lower than 1580℃

Free Inquiry
Refractory Briquetting Machine

Process capacity1-200tph

Briquette size30-80mm
(can customize)

Common shapes

  • round

  • square

  • pillow

  • oval

Working Video

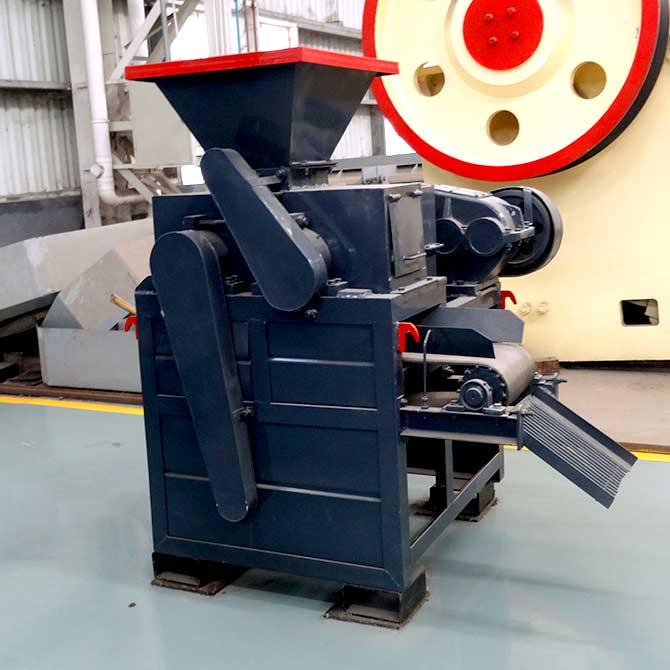

The design principle of the refractory ball press machine is that after the material enters between the two pairs of rollers inside the machine body, under the force of forced squeezing of the rollers, the material is pressed to shape it.

Materials

The briquettingmachine can be used to press iron filings, iron oxide scale, coal powder, ironpowder, coking coal, aluminum powder, gypsum, tailings, carbon powder, slag,sludge, kaolin, activated carbon, coke powder and other powders.

It is widely usedin refractory materials, power plants, metallurgy, chemical, energy,transportation, heating and other industries.

Not sure whether your material can be used or not?

Contact us

Related Projects of Briquette Machine

Fote Machinery is able to offer you the most efficient plant with minimum initial investment and operational cost.

Consult and Get Free Flowchart

Briquette Machine Parameter

Almost all the materials can be used in the roller briquette press machine, the f ollowing are some common materials:

Model Roller Diameter
(mm)
Capacity(t/h) Power(kw) Reducer
FTMQ290 290 1-2.5 5.5-7.5 350
FTMQ360 360 3-5 7.5-11 350
Heavy FTMQ360 360 3-5 7.5-11 400
FTMQ430 430 5-8 15 400
Heavy FTMQ430 430 5-8 15 500
FTMQ500 500 8-11 30 650
FTMQ650 650 10-15 37-45 750
FTMQ750 750 20-25 45 750
FTMQ850 850 20-28 55 850
FTMQ1000 1000 25-35 90 1000
